XYT2101LCD Best well sale China portable walk through metal detector sale

FOB Reference Price:Get Latest Price
5 Set/Sets (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Guard Spirit
Model Number:
Product name:
XYT2101LCD China portable walk through metal detector sale
8, 16, 24 Zones
Electric current:
AC110V-240V,50/60HZ (build-in battery)
Alarm Type:
sound alarm and LED light alarm
Net weight:
Workplace environment:
Sensitivity adjustable:
Each zone has 255 degree sensitivity level
one year free
Packaging & Delivery
Packaging Details
Carton package:65Kgs,0.5CBM
Wood package: 75Kgs,0.6CBM
Delivery Time
Shipped in 5 days after payment

Welcome to visit our Alibaba website and look over our products. Our ISO factory established in 2000 in the field of  X-ray baggage scanner, multi-zone walk through metal detector, hand held metal detector, under vehicle scanning system and Anti-explosive products


XYT2101LCD Best well sale China portable walk through metal detector sale


Electric current: AC85V~264V/50-60HZ

Power: <20W, low consume, low radiation

Gross weight: 70KG

Workplace environment: -20~+50

Standard: GB15210-2003, CE

Standard External size: 2230mm(H)X835mm(W)X580mm(D)

Standard Internal size: 1990mm(H)X700mm(W)X500mm(D)


Product Description

Technical parameter



Electric current




Gross weight:


Workplace environment



Sound alarm & LED light alarm

Inner size


Outer size



GB15210-2003, CE

Detecting zone

8-16-24 zones

Sensitivity adjustable

Each zone has 255 degree sensitivity level

Adjustable Passing speed

up to 100 persons/min

Network support



Characteristic & Function

  • Ø  5.7 inch LCD screen with Infrared remoter controller
  • Ø  Adopt advanced digital signal processing control replaced

traditional analog signal control, better stability.

  • Ø  Friendly windows interface, both Chinese and English program, easy to operate.
  • Ø  Program Self-diagnostic when power onautomatically checking left and right door panel, LED light and choose the best working frequency.
  • Ø  Automatically count passengers and alarm times, keep alarm records for inquiry (up to 20000 records)
  • Ø  Detecting Zones: 6 detecting loops, can extend to 12,18zones by separate left, right, ,middle side detection to pinpoint detection(As follow picture)
  • Ø  Sensitivity adjustable:Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt..
  • Ø  Sound Alarm: 1-25s alarm time, 255 different sound volume and 12 tones for choose
  • Ø  LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
  • Ø  Lock and Password protection, only the authorized person can operate.
  • Ø  Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
  • Ø  6 preset programs for security application versatility
  • Ø  4 hours Battery backup , the uninterruptible power protection system secure the parameters when power off.
  • Ø  PVC material and Control unit on the top, waterproof, moisture-proof and cooler.
  • Ø  Integrated and modularized circuit design lead to simple installation and more convenient after services.
  • Ø  Adjustable Passing speed: up to 100 persons/min
  • Ø  Background light:0-99 seconds for choose
  • Ø  Calendar function:real time display year, month, date, hour, minute, second
  • Ø  Harmless to heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
  • Ø  Network support: (For Option)




Packaging & Shipping




Walkthrough Metal Detector is popular adopted in Airport, Customs, Railway station, Metro, Police, Court, Embassy, Commercial buildings, Military installations, Ships, Shipping Mall,  Army, Prison, Government agency, Bank, Factory, Hotel, Entertainment environments, Gymnasiums, Exhibition Centers etc. Public security.


Our Services

 For door frame metal detector, we will warranty at least one year free .

More services include, OEM ,ODM,Trainning,installation.


Company Information

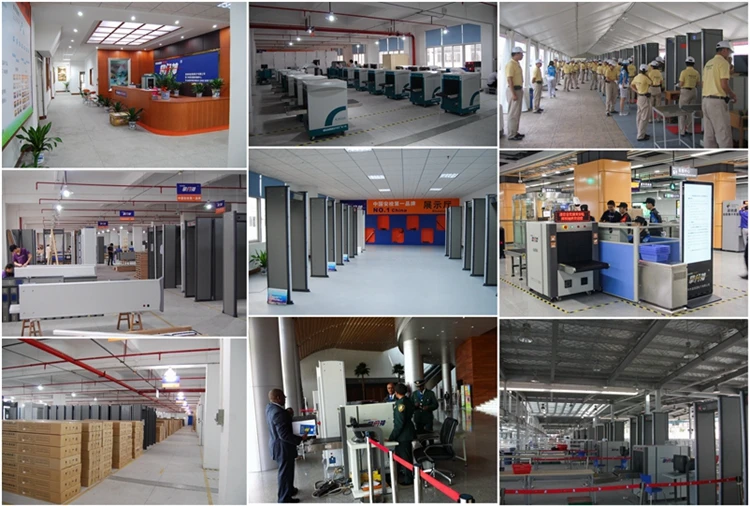

 Our Company (Shenzhen Xinyuantong Electronics Co., Ltd., hereinafter “Company”) was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m2, there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provides the solutions to the public safety, and provides the complete production and integration services.


The Company is committed to the technical development and research of “Guard Spirit” series of security products, the developed products have been granted by 28 national patents, and have formed five categories of products including the metal detectors, X-ray access security products, test products for radioactive materials, chassis inspection products, EOD and anti-explosion products.


 Our Company has been committed in the business of access security, security equipments and services for 12 years, and during the period, we have provided safety and security services for hundreds of large-scale events, meetings, exhibitions, political and legal departments, railways, highways, ports and other places, including 26th Summer Universiade Shenzhen 2011, World Expo 2010 Shanghai, 16th Asian Games Guangzhou 2010, 14th FINA World Championship -Shanghai 2011, 24th Winter Universiade Harbin 2009, Olympic Games Beijing 2008, Wuhan-Guangzhou high-speed railway, Beijing-Shanghai high-speed railway and other key events and projects.
